Intelligent Small Break
The HXS-100 series is an intelligent digital circuit breaker independently developed with the next-generation electronic technology. Integrating sensor technology and communication technology, this digital circuit breaker is suitable for terminal power distribution systems of civil, industrial, new energy and commercial building applications, with a rated voltage of AC230V/AC400V, DC48V/500V and a maximum rated current of 100A.
- Overview
- Recommended Products
The HXS-100 series is an intelligent digital circuit breaker independently developed with the next-generation electronic technology. Integrating sensor technology and communication technology, this digital circuit breaker is suitable for terminal power distribution systems of civil, industrial, new energy and commercial building applications, with a rated voltage of AC230V/AC400V, DC48V/500V and a maximum rated current of 100A.
It is equipped with multiple protection functions, including dual short-circuit protection, dual overload protection, overvoltage and undervoltage protection, overcurrent protection, leakage current protection and overtemperature protection. It also boasts a wide range of functional features such as voltage and current monitoring, energy metering, electric meter functionality, active power and reactive power measurement, phase loss protection, three-phase imbalance monitoring, power factor detection, temperature monitoring, timing strategy setting, data storage, data transmission, as well as remote control of switching on and off.
Featuring high reliability, strong breaking capacity and compact size, the device supports multiple wireless communication protocols. It enables unified management of digital circuit breakers through the cloud platform, and realizes the four remote functions of remote signaling, remote metering, remote control and remote adjustment.
Technical Parameters
Rated Current (In) |
6-100A |
Pole Configuration |

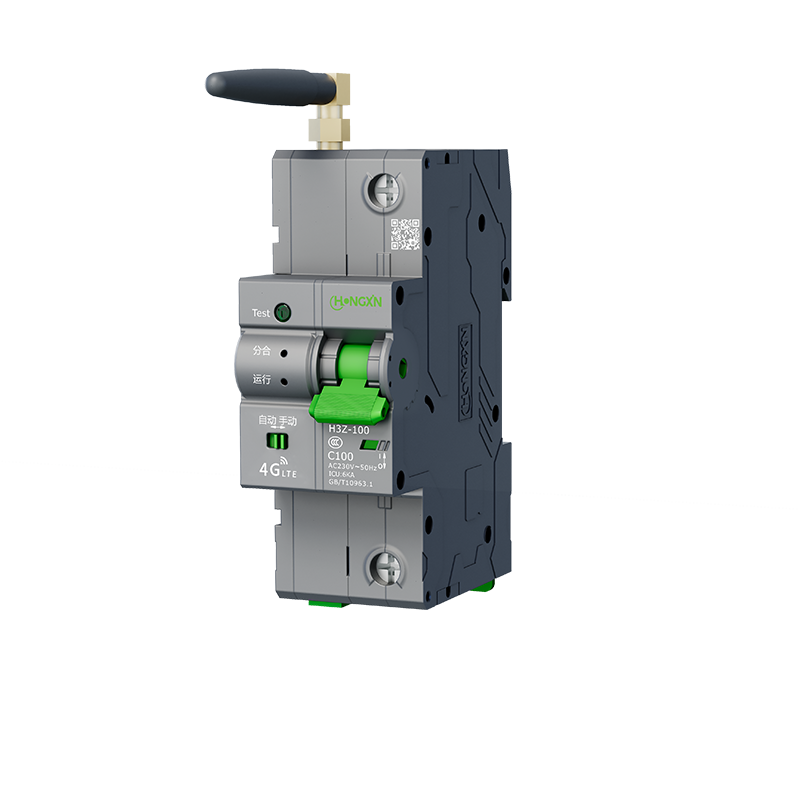

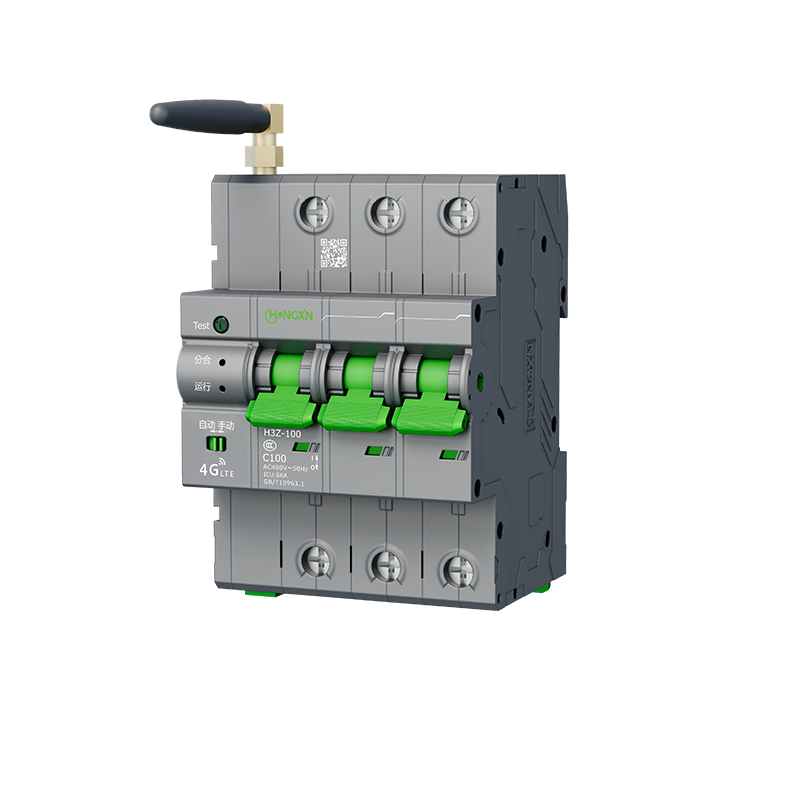

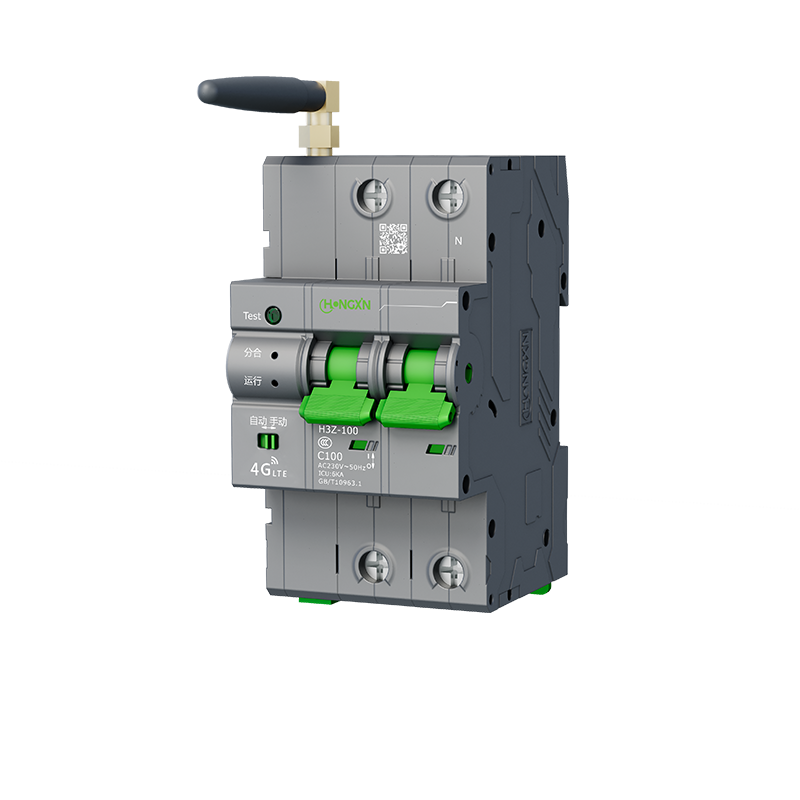

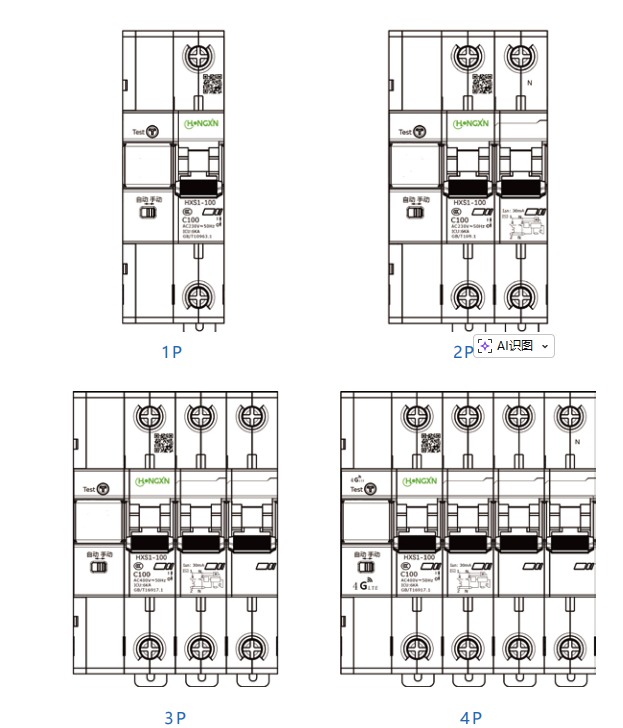

1P, 2P, 3P, 4P |
Rated Operating Voltage (Ue) |
AC230V (1P), AC400V/415V (3P/4P), DC48V/500V |
Rated Insulation Voltage (Ui) |
690V |
Rated Impulse Withstand Voltage (Uimp) |
6KV |
Operating Frequency |
50/60Hz |
Breaking Capacity |
≥10000A |
Electrical Life |
10,000 Cycles |
Mechanical Life |
≥30,000 Cycles |
Protection Class |
IP20 |
Housing Fire Rating |
Class V0 |
Operating Ambient Temperature |
-35℃~80℃ |
Installation Altitude |
≤2000m |
Communication Method |
RS-485, 4G, WiFi, Ethernet (Optional) |
Measurement Accuracy |
Class 0.5 for Current/Voltage; Class 1 or above for Active/Reactive Power (Class 0.5 customizable) |
Feature Description
Independent power supply: The circuit breaker has a built-in power module and does not require an external power supply.
Supports RS-485 communication, 4G communication, etc. A single gateway can connect up to 30 circuit breakers at most.
Supports multiple control methods including local control, timing control, group scene control and sensor linkage control.
It can remotely feed back the opening and closing status of the circuit breaker in real time, support the statistics of switching on and off times, and has an auto-reclosing function.
The built-in transformer can collect real-time data of the line such as voltage, current, active power, reactive power, power factor and leakage current.
Built-in metering function for measuring and counting the power consumption of the line.
Supports multiple protection functions including overvoltage/undervoltage protection, temperature protection, overload/short-circuit protection and leakage protection.
Supports local and remote self-test functions.
Application Scenarios
Civil Sector: Terminal power distribution for residences and apartments, realizing home appliance safety protection, energy consumption statistics and remote control.
Commercial Sector: Office buildings, shopping malls, hotels, etc., suitable for precise power distribution and operation maintenance management of lighting, air conditioners and office equipment.
Industrial Sector: Factory production lines and workshop power distribution systems, ensuring stable operation of equipment and preventing risks such as three-phase imbalance and overload.
New Energy Sector: Terminal power distribution for photovoltaic and energy storage systems, adapting to the wide voltage requirement of DC48V/500V, and taking into account both safety protection and data monitoring.
Public Facilities: Hospitals, schools, transportation hubs, etc., providing high-reliability power distribution protection and efficient operation maintenance solutions.
Brand Guarantee and Services
Xiamen Hongxin Intelligent Technology Co., Ltd. has been deeply engaged in the field of intelligent power distribution. Headquartered in Xiamen Tong'an Industrial Concentration Zone, the company has a complete R&D, production and service system. All products have passed strict quality inspections and meet high industry standards. The professional technical team provides full-process technical support including model selection guidance, installation and debugging, and platform docking. The sound after-sales guarantee system responds quickly to fault handling needs, ensuring the safe and worry-free operation of your power distribution system.
