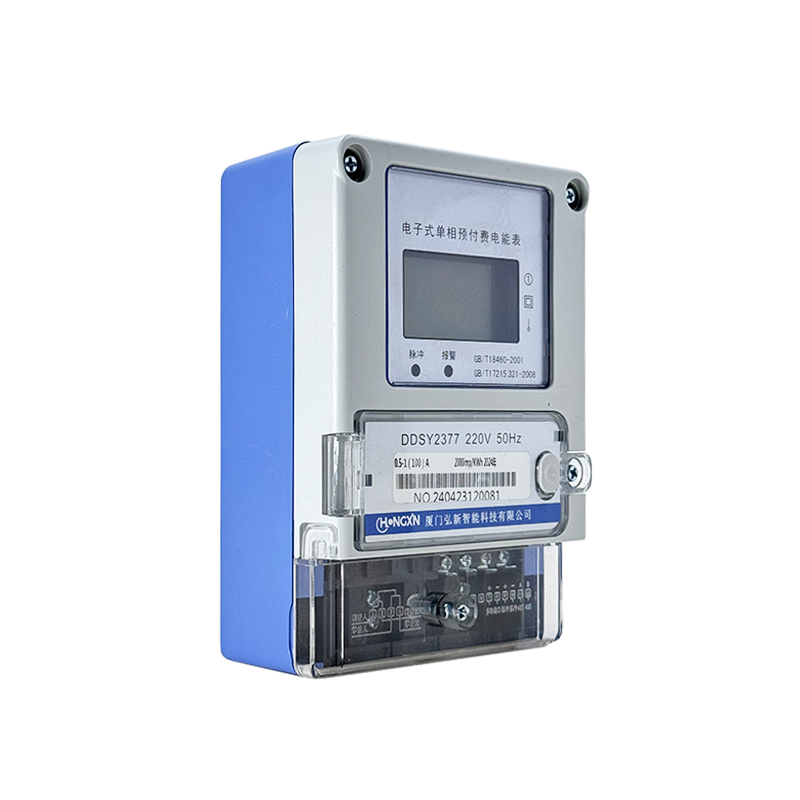

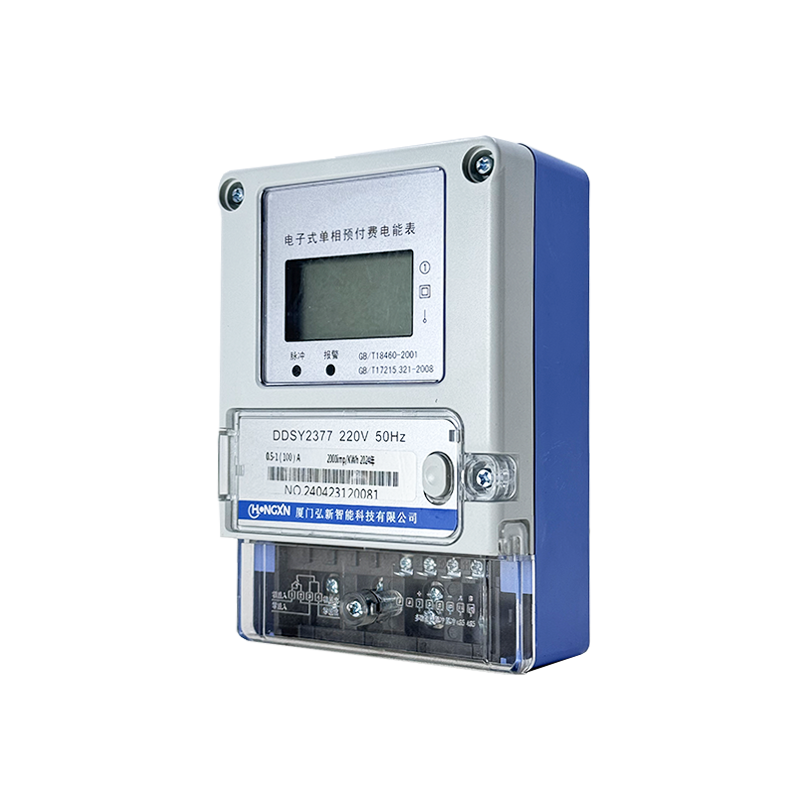

Electronic Single-phase Energy Meter RS485

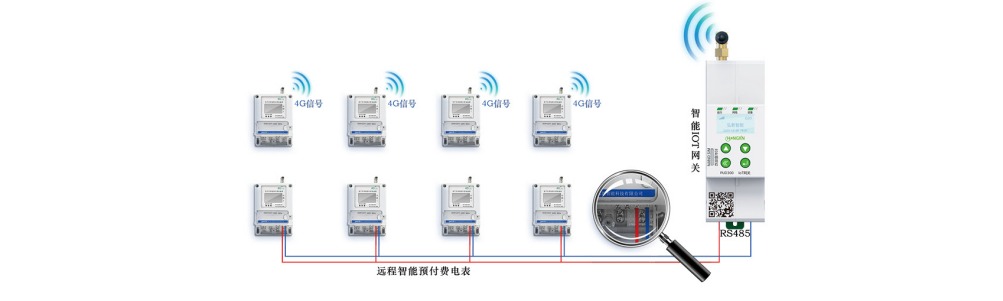

The RS485 communication scheme is a wired data transmission method, which is applied to occasions where 485 communication lines are convenient to arrange. The RS485 remote prepayment electric meter adopts a cost-effective networking of RS485 electric meters + collectors, realizing functions such as remote meter reading, remote control, and remote recharge of electric meters. Compared with the traditional IC card electricity payment mode, the RS485 remote prepayment is a further upgrade, which is time-saving, labor-saving and efficient. To a large extent, it saves the initial networking cost and reduces the later operation and maintenance cost.
- Overview
- Recommended Products
Functions and Features
High Accuracy: Error < ±1.0%;
High Sensitivity: Starting Current < 0.4%Ib;
High Load Capacity: Current Overload Multiple > 4 times;
Low Power Consumption: Meter's Own Power Consumption < 1W;
Light Weight: < 0.6kg;
Starting Current: Under the conditions of rated voltage, rated frequency and power factor of 1.0, the electric energy meter can work normally when the load current is greater than 0.4%Ib;
Product Advantages
Cost-Effective Networking: Adopting RS485 wired communication scheme, matching with collectors for networking, which greatly reduces initial networking costs and later operation and maintenance costs compared with traditional IC card electricity payment mode, and realizes high-efficiency operation without manual on-site operation.
High Performance & Reliability: With high accuracy (error < ±1.0%), high sensitivity (starting current < 0.4%Ib) and strong load capacity (current overload multiple > 4 times), it ensures accurate metering and stable operation even in complex power supply environments. The meter itself has low power consumption (< 1W) and light weight (< 0.6kg), which is energy-saving and easy to install.
Intelligent & Versatile Functions: Integrated with RS485 and infrared communication interfaces, it supports remote meter reading, and can be expanded with remote switching on/off function. Optional single tariff, multi-tariff and step tariff modes can meet the diverse needs of different users. Built-in high-precision transformer, it can accurately collect voltage, current, active power and other data.
Easy Operation & Wide Compatibility: Cooperating with independently developed dual-platform background management system (computer + mobile phone), it is simple and easy to use, realizing unified management of meters. It is compatible with Modbus protocol, and the basic current specifications are diverse (2.5(10)A to 30(100)A), which can adapt to different load requirements.
High Quality & Safety: Complies with national standards and has relevant certifications (such as CCC certification, metrology certification), with stable performance and long service life. It has multiple protection functions such as overload protection and anti-theft electricity, effectively ensuring the safety of power use and metering accuracy.
Product Applications
The electronic single-phase energy meter (RS485 model) is widely used in various single-phase power supply scenarios that require remote metering, centralized management and cost control, relying on its cost-effectiveness, intelligence and stability, and is especially suitable for the following fields:
Residential Scenarios: Applicable to residential areas, apartments, rental houses and rural households, realizing household energy consumption statistics, remote recharge and centralized management of property, which is convenient for property management and residents to use electricity.
Commercial Scenarios: Suitable for shops, supermarkets, office buildings and hotels, used for metering and managing the power consumption of lighting, air conditioning and office equipment, helping merchants control energy consumption costs and realize intelligent operation and maintenance.
Industrial & Enterprise Scenarios: Applied to factory dormitories, workshops (single-phase equipment), industrial parks, etc., to realize centralized metering of single-phase power consumption, prevent overload risks, and facilitate enterprise energy management and cost accounting.
Public Facility Scenarios: Used in schools (dormitories, teaching buildings), hospitals, nursing homes and transportation hubs, providing stable and accurate metering services, and matching the centralized management needs of public institutions for power use.
Engineering & Transformation Scenarios: Ideal for rural power grid transformation, old community power transformation and engineering household metering projects, with simple installation, low cost and strong adaptability, which is favored by real estate projects and engineering contractors.
